How to Check Your Motherboard Model in Windows 10/8/7

Sometimes you might need to figure out what motherboard you have in your computer. Of course, it can be as simple as opening the case, because every motherboard has its model name and number printed on it. However, it is not such convenient and straightforward as you think. Otherwise, you wouldn't google it. So, in this post we will share how to check your motherboard model in Windows 10/8/7 without opening case or any third-party tool.

1. Check motherboard model by CMD

The first way to find out what motherboard you have is Command Prompt. Command Prompt (CMD) is a native application of the Windows and gives the user an option to perform operations using commands. You can type some commands in it to check motherboard model of your laptop or desktop. Here are detailed steps.

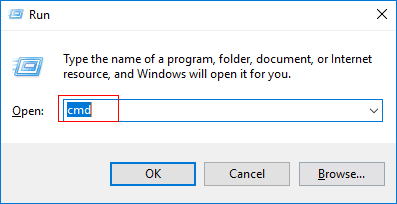

Step 1: Press Windows key + R shortcut to open a Run box. Then type cmd and hit Enter.

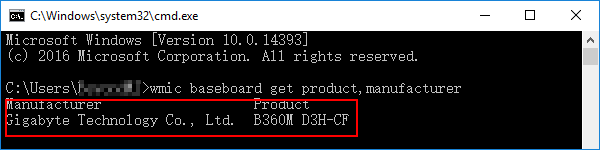

Step 2: In Command Prompt window, type wmic baseboard get product, manufacturer and press Enter. Finally, you can find out what kind of motherboard you have on the screen. As shown below, the model name of motherboard is Gigabyte B360-D3H.

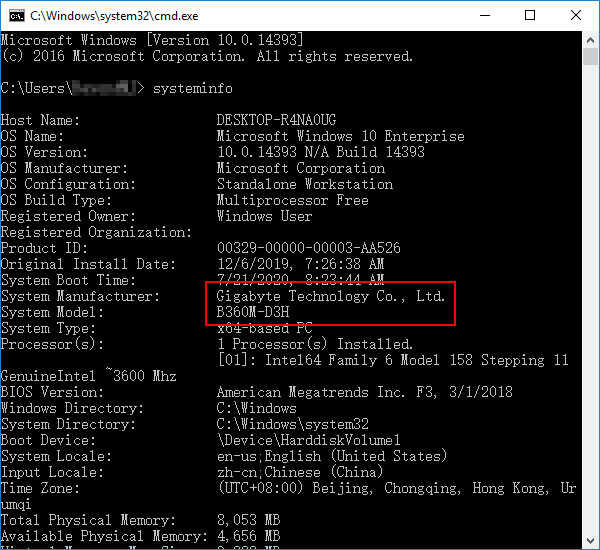

In addition, you can also type systeminfo and press Enter to get all the information of your computer, the motherboard model name is also included.

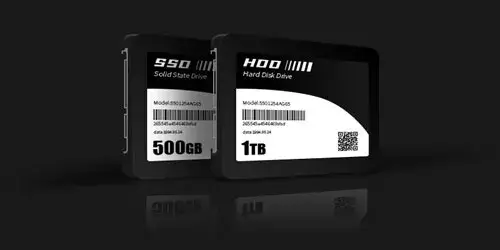

If you're gonna buy an SSD to your motherboard, you must first know How Much Hard Drive Space You Really Need.

If you are buying a RAM to the motherboard, you're strongly recommended to read this RAM Buying Guide | How to Choose RAM for Your Computer at first.

2. Check motherboard model by System Information

System Information is a Windows built-in tool that reports detailed system information including the motherboard model. Follow the steps below.

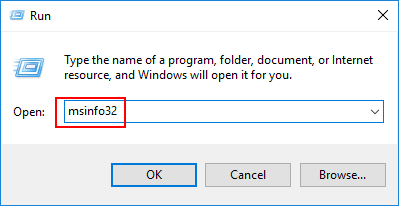

Step 1: Press Windows Key + R to open a run window. Then type msinfo32 and press Enter.

Step 2: A window named System Information popups, here you will see the system information and find out the model of motherboard in your pc.

3. Check motherboard model by DirectX

DirectX is a tool comes with Windows 10 and this tool reports detailed information about components and drivers install on Windows 7, 8, 10. It is also a simple way to find out what motherboard you have.

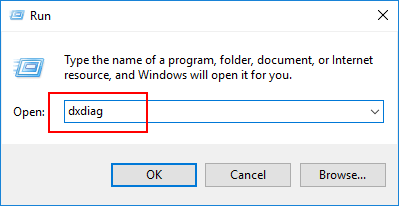

Step 1: Press Windows Key + R and type dxdiag and press Enter.

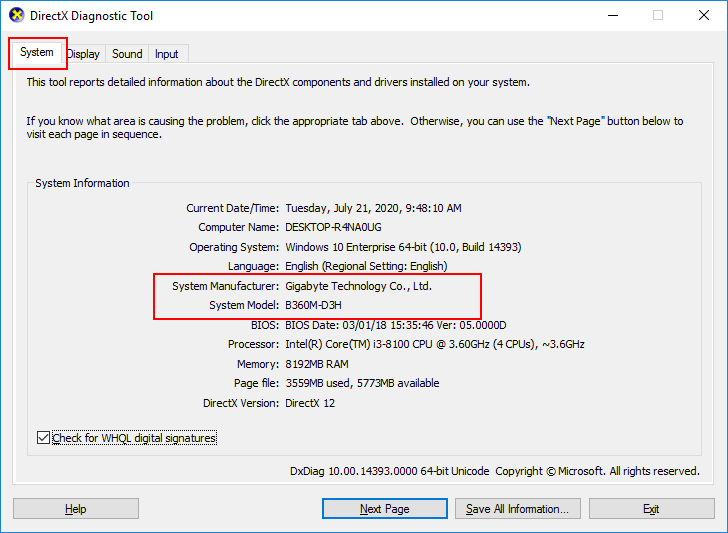

Step 2: On the window of DirectX Diagnostic Tool, you will find out all information of your computer included motherboard model.

4. Check motherboard model by Boot Menu

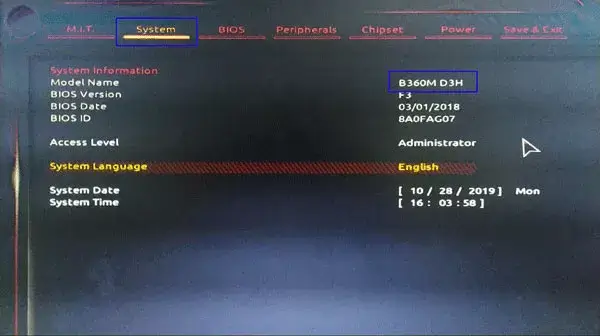

The Boot Menu is a menu that allows us to load up other operating systems or applications where we can also figure out the computer information include motherboard model. When the computer is booting up, we can press one of several keyboard keys (Esc, F2, F10 or F12, depending on the manufacturer or motherboard.) to enter the Boot Menu. On the System tab, you will find out your motherboard model of pc.

Tips about motherboard model

In some cases, the result you got by the above methods may be the "system product name" or "to be filled by o.e.m.". That means you purchased the motherboard directly from the manufacturer, and then assembled by yourself. If that, you may need to download a third-party tool or open the computer case to check your motherboard model.

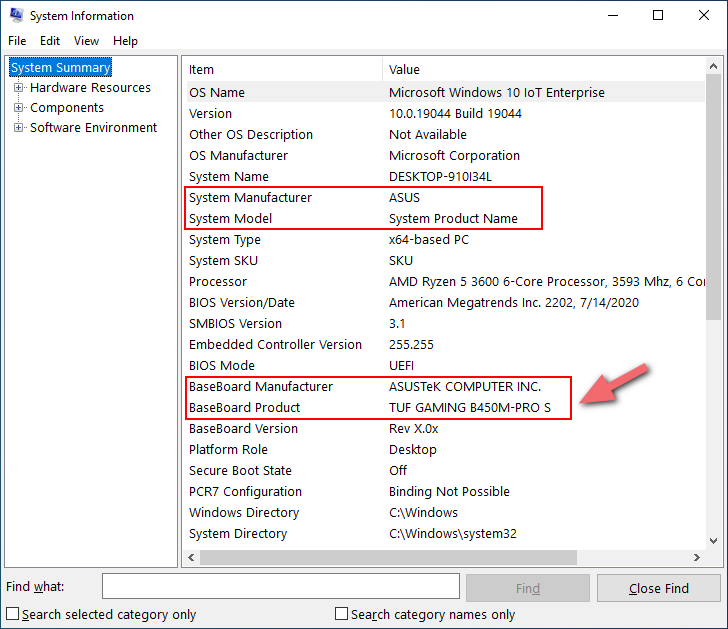

Alternatively, you can find the result in the Baseboard product field.
